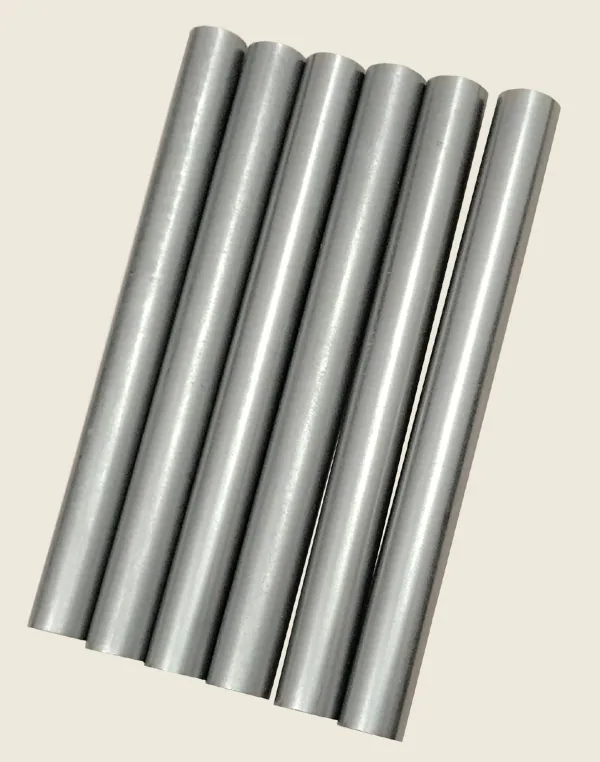

Carbon Electrode - Graphite Rod
Durable, high purity, high density carbon rod. 10 mm x 100 mm
- Article code
- GR4BAR10X100
- Category
- Metals & non-metals
Specification and availability are confirmed by Chemical Suppliers when you inquire. Product details are attached to your request automatically.
Properties
- Article / SKU
- GR4BAR10X100
- Density:
- 1.75 g/cc
- Electric Resistivity:
- 8-11 mega Ohm
- Thermal Conductivity:
- 121.1 W/m.k
- Coefficient of thermal expansion:
- 5.46 /ºC
- Shore Hardness:
- 42 HSD
- Breaking Strength:
- 38 MPa
- Compressive Strength:
- 65 MPa
- Elasticity Modulus:
- 9 Gpa
- Gas hole ratio:
- 17%
- Granularity:
- 13-15 micro
Packaging options
- 1 Pack
- 100 Pack
- 10 Pack
Details
Durable, high purity, high density, high conductivity graphite rod with a diameter of 10-mm and length of 100 mm.
High purity, density and conductivity
10 mm x 100 mm size
Graphite Electrode - High Purity, 8 mm x 100 mm
Carbon Electrode - High Density, 10 mm x 150 mm
Graphite Rod - High Conductivity, 10 mm x 200 mm
Carbon Rod - High Strength, 10 mm x 100 mm
Graphite Electrode - High Temperature Resistance, 10 mm x 100 mm
Note: These are similar products, and each product is different, so research is required to find the best fit for your needs.
Perfect for scientists, engineers, and researchers in need of a high-quality graphite rod for various laboratory applications.
